SEAMOR STEELHEAD

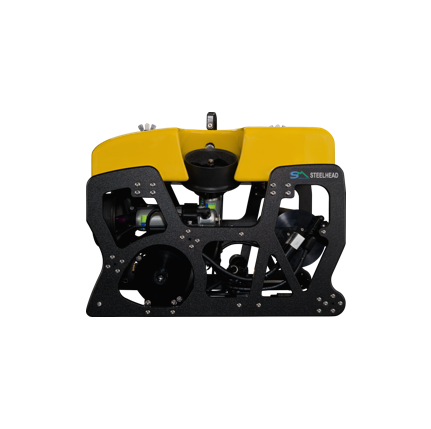

The Steelhead inspection-class ROV is a portable, lightweight and stable underwater system that is easily operated through intuitive flight controls. A perfect vehicle to inspect confined spaces.

SEAMOR STEELHEAD PRODUCT

The Steelhead inspection-class ROV is a portable, lightweight and stable underwater system that is easily operated through intuitive flight controls. Its small profile allows this vehicle to inspect confined spaces and be easily stowed.

The compact Steelhead is easily deployed and recovered from small vessels and docks – no need for hoists or cranes. A standard definition NTSC/PAL camera, optimized for lowlight conditions provides the ROV operator with quality video. “Out of the box” features include an integrated controller and LCD monitor module with auto depth, auto heading, a digital video recorder and much more.

FEATURES

  • Intuitive controller
  • Broadcast-quality colour, zoom camera
  • Variable speed & directional ROV control
  • Integrated controller with LCD monitor
  • Digital Video Recorder (DVR)
  • Manual & automatic camera focus control
  • Depth-rated to 300 m (1000 ft)
  • Auto depth, auto heading functions
  • Four (4) powerful thrusters
  • Leak detection warning system
  • Tether-launchable



OPTIONS

OPTIONAL ACCESSORIES

Marine Auxiliary Camera
MARINE AUXILIARY CAMERA

The SEAMOR Marine Auxiliary Camera is an easily- installed and re-positionable standard definition colour or black and white camera. This accessory opens up a world of new possibilities for ROV pilots. Being able to view…

See Details

Marine Auxiliary Light
MARINE AUXILIARY LIGHT

The SEAMOR Marine Auxiliary Light is an easily-installed and positioned independent light source. This compact unit will light up even the darkest corners of the deep. With a 125 degree beam angle and cool white…

See Details

Dual Function Gripper
DUAL FUNCTION GRIPPER

Enhance the capabilities of your ROV with the addition of a SEAMOR Dual Function Gripper. With the Gripper strategically mounted in view of the ROVs on-board camera the pilot can easily maneuver into a pick…

See Details

Handheld Control Pendant
HANDHELD CONTROL PENDANT

The SEAMOR Marine Control Pendant is an easy-to-use accessory that offers a more comfortable approach to controlling your SEAMOR Marine ROV. Utilizing a robust and reliable Logitech F310 game controller, the SEAMOR Control Pendant puts…

See Details

SEAMOR Sea Otter Reel
SEAMOR SEA OTTER REEL

SEAMOR Marine manufactures its own line of durable, high-quality reels for tether management and storage. Made from high grade aluminum and stainless steel, our reels can accommodate a variety of tether sizes, slip rings, and…

See Details

SEAMOR Thruster
SEAMOR THRUSTER

SEAMOR Marine’s thrusters are well respected for their high performance and rugged design. Available in 300m & 600m depth ratings, these thrusters utilize high quality 150W Maxon DC motors and gearboxes. Powerful specially designed props…

See Details



MORE OPTIONS

  • Highbrightness monitor
  • Extra monitor in power supply case
  • Aux float that will add extra payload (1.5lbs/0.7kg)
  • Laser
  • Sonar integration
    • Imagenex 852 Sonar
    • Tritech Micron DST sonar
    • Tritech Micron Echosounder
    • Tritech Gemini 720im
  • USBL integration
  • TritechMicronNav USBL
    • MicroNav USBL GPS antenna option
  • Altimeter with auto altitude control
SPECIFICATIONS

Download Specs

VEHICLE DIMENSIONS & ATTRIBUTES

  • Depth Rating: 300 m (1,000 ft)
  • Size (L x W x H): 502 mm x 384 mm x 373 mm (19.8” x 15.1” x 14.7”)
  • Diagonal: 515 mm ( 20.3”)
  • Weight in air: ~ 21 Kg (47 lbs) (standard vehicle trimmed for fresh water)
  • Construction: Anodized aluminum, stainless steel, syntactic foam and marine-grade polymers

THRUSTERS

  • Configuration: Two (2) horizontal and two (2) vertical/lateral thrusters. Built-in short-circuit protection on each channel
  • Speed: 1.75 knots (dependent on environment and configuration)

FORWARD CAMERA AND LIGHTS

  • Format: NTSC or PAL (full broadcast-quality)
  • Focus: Manual and Automatic
  • Zoom: 3x optical, up to 32x total zoom
  • Tilt Range: +/- 90 degree rotation
  • Lights: Two (2) x 1,500 lumens (3,000 lumens) dimmable high-intensity LED
  • Lasers: Optional parallel green lasers on 150 mm (6″) baseline for scale reference

AUXILIARY CAMERA AND LIGHTS

  • Type: Colour or Black & White, low light
  • Format: NTSC or PAL
  • Focus: Fixed
  • Lights: Two (2) X 1,500 lumens (3,000 lumens total) on/off control

TETHER

  • Length: 165 m (540 ft) standard starting length; 335 m (1,100 ft) standard long length; on manual reel. Other lengths available upon request
  • Diameter: 10 mm / 0.4″ (nominal)
  • Breaking strength: 700 kg f, Kevlar reinforced
  • Weight in water: Neutrally buoyant in fresh water

SENSORS

  • Pressure / Depth
  • Compass heading
  • Pitch and roll
  • Dedicated leak and temperature sensors in both the electronics and camera canisters

CONTROL SYSTEM

  • Pelican Case mounted controller
  • Built-in 15” LCD monitor
  • Digital video recorder included
  • Video overlay: depth, heading, auto-depth, auto-heading, pitch/roll, tether turns counter, date & time

SEAMOR CHINOOK

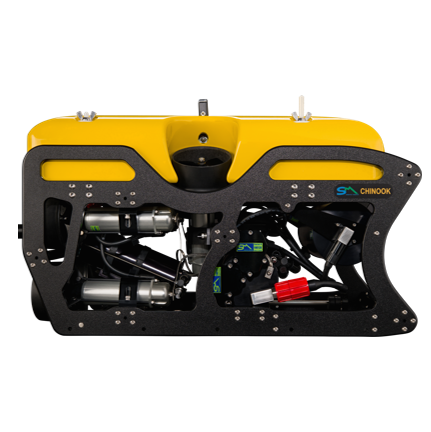

The Chinook is an industrial grade inspection ROV with a wide range of capabilities. Explore depths up to 300 m (1,000′) with the standard vehicle or 600 m (2,000′) with the deep water version.

SEAMOR CHINOOK PRODUCT

The Chinook is an industrial grade inspection ROV with a wide range of capabilities. Explore depths up to 300 m (1,000′) with the standard vehicle or 600 m (2,000′) with the deep water version.

A true workhorse, the Chinook offers a stable platform yet remains compact. With its small profile, the Chinook can operate in tight places and is easily stowed when not in use. Multiple handles and frame cross members allow two people to handle this ROV with ease.

For greater versatility, customize your Chinook by adding accessories such as extra thrusters, navigational searching aids, manipulators, tool skids and more.

FEATURES

  • Intuitive controller
  • High-resolution colour, zoom camera
  • Variable speed & directional ROV control
  • Integrated controller with LCD monitor
  • Digital Video Recorder (DVR)
  • Manual & automatic camera focus control
  • Depth-rated to 300 m (1000′) or 600 m (2,000′) with deep-water model
  • Up to six (6) powerful thrusters
  • Auto depth, auto heading functions
  • Leak detection warning system
  • Tether-launchable
OPTIONS

OPTIONAL ACCESSORIES

Marine Auxiliary Camera
MARINE AUXILIARY CAMERA

The SEAMOR Marine Auxiliary Camera is an easily- installed and re-positionable standard definition colour or black and white camera. This accessory opens up a world of new possibilities for ROV pilots. Being able to view…

See Details

Marine Auxiliary Light
MARINE AUXILIARY LIGHT

The SEAMOR Marine Auxiliary Light is an easily-installed and positioned independent light source. This compact unit will light up even the darkest corners of the deep. With a 125 degree beam angle and cool white…

See Details

Dual Function Gripper
DUAL FUNCTION GRIPPER

Enhance the capabilities of your ROV with the addition of a SEAMOR Dual Function Gripper. With the Gripper strategically mounted in view of the ROVs on-board camera the pilot can easily maneuver into a pick…

See Details

Handheld Control Pendant
HANDHELD CONTROL PENDANT

The SEAMOR Marine Control Pendant is an easy-to-use accessory that offers a more comfortable approach to controlling your SEAMOR Marine ROV. Utilizing a robust and reliable Logitech F310 game controller, the SEAMOR Control Pendant puts…

See Details

SEAMOR Sea Otter Reel
SEAMOR SEA OTTER REEL

SEAMOR Marine manufactures its own line of durable, high-quality reels for tether management and storage. Made from high grade aluminum and stainless steel, our reels can accommodate a variety of tether sizes, slip rings, and…

See Details

SEAMOR Thruster
SEAMOR THRUSTER

SEAMOR Marine’s thrusters are well respected for their high performance and rugged design. Available in 300m & 600m depth ratings, these thrusters utilize high quality 150W Maxon DC motors and gearboxes. Powerful specially designed props…

See Details



MORE OPTIONS

  • HD video
  • High brightness monitor
  • Extra monitor in power supply case
  • Aux float that adds extra payload (1.5lbs/0.7kg)
  • Laser
  • Sonar integration
    • Imagenex 852 Sonar
    • Imagenex 881A Sonar Imagenex
    • 965A Sonar Blueview M900
    • Soundmetrics Aris 3000
    • Tritech Gemini 720is
    • Tritech Gemini 720im
    • Tritech Gemini 720ik
    • Tritech Micron DST sonar
    • Tritech MicronNav USBL
      • MicroNav USBL GPS antenna option
    • Tritech Micron Echosounder
  • USBL integration
    • LinkQuest Tracklink 1500LC USBLTritech MicronNav USBL MicroNav USBL GPS antenna option
  • Rotating Brush
  • Interchangeable skid-mounted instrumentation or tooling platforms
  • CT and UT probe integration
  • Altimeter with auto altitude control
SPECIFICATIONS

Download Specs

VEHICLE DIMENSIONS & ATTRIBUTES

  • Depth Rating: 300 m (1,000 ft) or 600 m (2,000 ft) with deep water model
  • Size (L x W x H): 686 mm x 384 mm x 406 mm (27” x 15.1” x 16”)
  • Diagonal: 533 mm ( 21”)
  • Weight in air: ~ 33 Kg (72 lbs) (6-thruster vehicle trimmed for fresh water)
  • Construction: Anodized aluminum, stainless steel, syntactic foam and marinegrade polymers

THRUSTERS

  • Configuration: Two (2) or four (4) horizontal and two (2) vertical/lateral thrusters. Built-in short-circuit protection on each channel
  • Speed: 2 knots (dependent on environment and configuration)

FORWARD CAMERA AND LIGHTS

  • Format: NTSC or PAL (full broadcast-quality)
  • Focus: Manual and Automatic
  • Zoom: 3x optical, up to 32x total zoom
  • Tilt Range: +/- 90 degree rotation
  • Lights: Two (2) x 1,500 lumens (3,000 lumens) dimmable high-intensity LED
  • Lasers: Optional parallel green lasers on 150 mm (6″) baseline for scale reference

AUXILIARY CAMERA AND LIGHTS

  • Type: Colour or Black & White, low light
  • Format: NTSC or PAL
  • Focus: Fixed
  • Lights: Two (2) X 1,500 lumens (3,000 lumens total) on/off control

TETHER

Available in twisted pair or fiber optic configurations

  • Length: 335 m (1,100 ft) standard starting length; max. std. length 500 m (1,640 ft) for twisted pair; 625 m (2,050 ft) for fiber optic, on manual reel
  • Diameter: 10 mm / 0.4″ (nominal)
  • Breaking strength: 700 kg f, Kevlar reinforced
  • Weight in water: Neutrally buoyant in fresh water

SENSORS

  • Pressure / Depth
  • Compass heading
  • Pitch and roll
  • Dedicated leak and temperature sensors in both the electronics and camera canisters

CONTROL SYSTEM

  • Pelican Case mounted controller
  • Built-in 15” LCD monitor
  • Digital video recorder included
  • Video overlay: depth, heading, auto-depth, auto-heading, pitch/roll, tether turns counter, date & time

SEAMOR MAKO

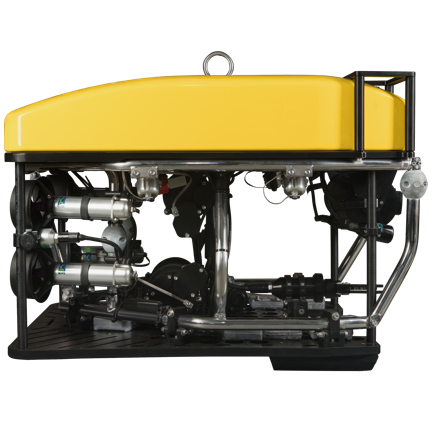

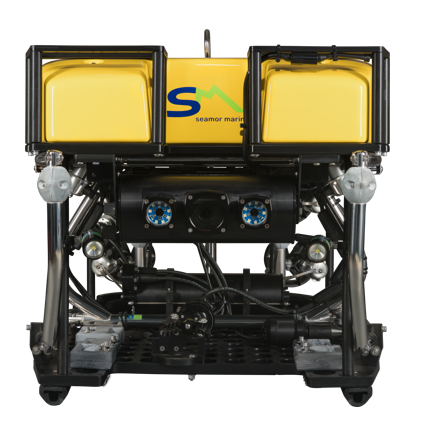

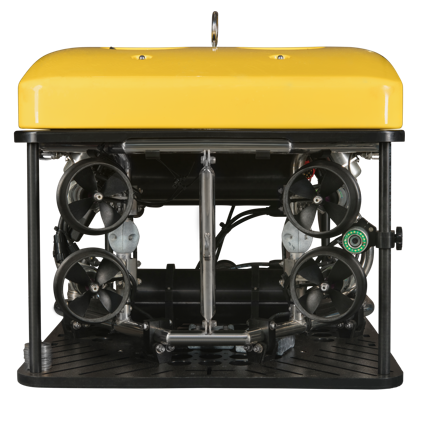

The Mako is SEAMOR Marine’s newest ROV. With a large open frame design and versatile mounting options, this vehicle can carry a variety of accessories and has the power capacity to run them all at once.

SEAMOR MAKO PRODUCT

The Mako is SEAMOR Marine’s newest ROV. With a large open frame design and versatile mounting options, this vehicle can carry a variety of accessories and has the power capacity to run them all at once.

The Mako’s payload (14 kg standard, upgradable to 22.5 kg) allows users to install heavy instrumentation, including multi-beam imaging sonars. Users can easily mount and position accessories without any special tools. The ample space in the accessory bay also improves flow-through, which ensures maximum thruster efficiency, making it easy to fly the Mako no matter the payload.

The Mako comes standard with eight (8) SEAMOR- designed thrusters; four (4) of these are vertical thrusters that provide a more stable flight. The second pair of vertical thrusters offers a failsafe compared to the competition who only offers a single pair. We have arranged the Mako’s four (4) horizontal thrusters to maximize forward thrust.



FEATURES

  • Heavy payload: 14 kg (30 lb) standard; upgradeable to 22.5 kg (50 lb)
  • Intuitive controller
  • High-resolution colour, zoom camera
  • Variable speed & directional ROV control
  • Integrated controller with LCD monitor
  • 8 powerful thrusters
  • Digital Video Recorder (DVR)
  • Manual & automatic camera focus control
  • Depth-ratedto 300 m (1,000 ft) or 600 m (2,000 ft) with deep-water model
  • Auto depth, auto heading functions
  • Leak detection warning system
OPTIONS

OPTIONAL ACCESSORIES

Marine Auxiliary Camera
MARINE AUXILIARY CAMERA

The SEAMOR Marine Auxiliary Camera is an easily- installed and re-positionable standard definition colour or black and white camera. This accessory opens up a world of new possibilities for ROV pilots. Being able to view…

See Details

Marine Auxiliary Light
MARINE AUXILIARY LIGHT

The SEAMOR Marine Auxiliary Light is an easily-installed and positioned independent light source. This compact unit will light up even the darkest corners of the deep. With a 125 degree beam angle and cool white…

See Details

Dual Function Gripper
DUAL FUNCTION GRIPPER

Enhance the capabilities of your ROV with the addition of a SEAMOR Dual Function Gripper. With the Gripper strategically mounted in view of the ROVs on-board camera the pilot can easily maneuver into a pick…

See Details

Handheld Control Pendant
HANDHELD CONTROL PENDANT

The SEAMOR Marine Control Pendant is an easy-to-use accessory that offers a more comfortable approach to controlling your SEAMOR Marine ROV. Utilizing a robust and reliable Logitech F310 game controller, the SEAMOR Control Pendant puts…

See Details

SEAMOR Sea Otter Reel
SEAMOR SEA OTTER REEL

SEAMOR Marine manufactures its own line of durable, high-quality reels for tether management and storage. Made from high grade aluminum and stainless steel, our reels can accommodate a variety of tether sizes, slip rings, and…

See Details

SEAMOR Thruster
SEAMOR THRUSTER

SEAMOR Marine’s thrusters are well respected for their high performance and rugged design. Available in 300m & 600m depth ratings, these thrusters utilize high quality 150W Maxon DC motors and gearboxes. Powerful specially designed props…

See Details



MORE OPTIONS

  • High brightness monitor
  • Extra monitor in power supply case
  • Upgraded payload (22.5 kg/50 lb)
  • Laser
  • HD video
  • Sonar integration
    • Imagenex 852 Sonar
    • Imagenex 881A Sonar
    • Imagenex 965A Sonar
    • Blueview M900
    • Soundmetrics Aris 3000
    • Tritech Gemini 720is
    • Imagenex 852 Sonar
    • Tritech Gemini 720im
    • Tritech Gemini 720ik
    • Tritech Micron DST Sonar
    • Tritech Micron Echosounder
    • Coda Octopus Echoscope C500 #D Sonar
  • USBL integration
    • LinkQuest Tracklink 1500LC USBL
    • Tritech MicronNav USBL MicroNav USBL GPS antenna option
  • 7 Function Hydraulic Articulating Robotic Manipulator (7 F-H-ARM)
  • Interchangeable skid-mounted instrumentation or tooling platforms
  • CT and UT probe integration
  • Altimeter with auto altitude control
SPECIFICATIONS



VEHICLE DIMENSIONS & ATTRIBUTES

  • Depth Rating: 300 m (1,000 ft) or 600 m (2,000 ft) with deep water model
  • Size (L x W x H): 840 mm x 635 mm x 674 mm (33” x 25” x 26.5”)
  • Diagonal: 890 mm ( 35”)
  • Weight in air: ~ 72 kg (160 lb) (8-thruster vehicle trimmed for fresh water)
  • Construction: Anodized aluminum, stainless steel, syntactic foam and marinegrade polymers
  • Payload: 14 kg (30 lb) standard; can be upgraded to 22.5 kg (50 lb)

THRUSTERS

  • Configuration: Four (4) horizontal and four (4) vertical/lateral thrusters
    • Built-in short-circuit protection on each channel
  • Speed: 2 knots (dependent on environment and configuration)

FORWARD CAMERA AND LIGHTS

  • Format: NTSC or PAL (full broadcast-quality)
  • Focus: Manual and Automatic
  • Zoom: 3x optical, up to 32x total zoom
  • Tilt Range: +/- 90 degree rotation
  • Lights: Two (2) x 1,500 lumens (3,000 lumens) dimmable high-intensity LED
  • Lasers: Optional parallel green lasers on 150 mm (6″) baseline for scale reference

AUXILIARY CAMERA WITH BUILT IN LED LIGHTING

  • Type: Colour or Black & White, low light
  • Format: NTSC or PAL
  • Focus: Fixed

TETHER

(Available in twisted pair or fiber optic configurations)

  • Length: 335 m (1,100 ft) standard starting length; max. std. length 500 m (1,640 ft) for twisted pair; 625 m (2,050 ft) for fiber optic, on manual reel
  • Diameter: 10 mm / 0.4″ (nominal)
  • Breaking strength: 700 kg f, Kevlar reinforced
  • Weight in water: Neutrally buoyant in fresh water

SENSORS

  • Pressure / Depth
  • Compass heading
  • Pitch and roll
  • Dedicated leak and temperature sensors in both the electronics and camera canisters

CONTROL SYSTEM

  • Pelican Case mounted controller
  • Built-in 15” LCD monitor
  • Digital video recorder included
  • Video overlay: depth, heading, auto-depth, auto-heading, pitch/roll, tether turns counter, date & time

DRONEQ ROBOTICS

Weikamperweg 120
7351 TH Hoenderloo
Netherlands
Tel. +31 88 64 65 000
info@droneq.nl

MARITIME DRONE COMMAND CENTER

DEN HELDER

Willemsoord 51
1781 AS  Den Helder  (NH)

 Netherlands

DRONEQ DRONE COMMAND CENTER

ENSCHEDE

p/a Technology Base
Vliegveldstraat 100 – B519
7524 PK Enschede

Netherlands

DRONEPORT EEMSHAVEN

EEMSHAVEN

Schildweg 16
9979 XR Eemshaven

Netherlands
